Technical characteristics
FREQUENCY RANGE: 2 to 30 me in 4 bands.
R-F SIGNAL INPUT: 0.15 watt PEP
POWER OUTPUT: 500 watts PEP.
IMD-3: – 35 db below PEP output.
R-F INPUT IMPEDANCE: 50 ohms
R-F OUTPUT IMPEDANCE: 50 ohms
TGC OUTPUT VOLTAGE: A d-e bias voltage is provided for automatic gain control
of the exciter.
POWE R REQUIREMENTS: Supplied by High Voltage Power Supply 428B-1.
+2000 volts d- e at 600 mA maximum, no more than 1 .25 percent ripple.
+400 volts d-e at 80 mA maximum, no more than 0.1 percent ripple.

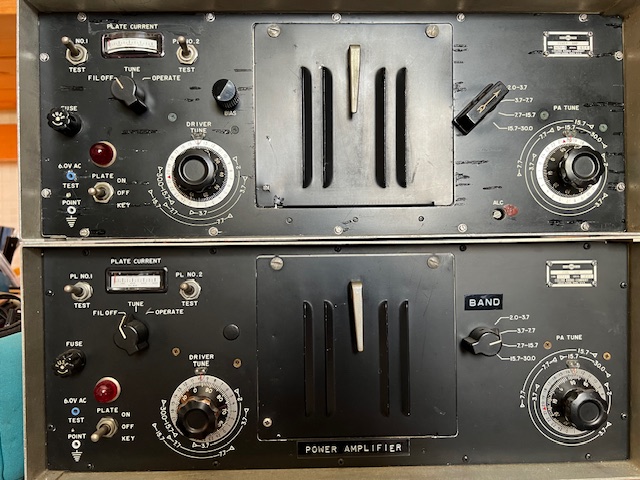

2代目のCollins 367A-3 (KWT-6)が仲間入りしました
2代目のKWT-6のファイナルは4CX250Bでしたので、現在、Originalの4CX-250Rに変更するか？4CX350Aに変更するか？検討中です。
